AFT Standards – Automatic Motorized Flexion

All of the following features are standard on the… variable speed flexion and much more

• The Creative AFT has a flexion control panel that is conveniently locate at the foot-end of the table which allows you to set the flexion speed from 7 to 28 rpm (an optional 30 minute timer can also be added).
• A selector switch allows you to stop the table in the horizontal or flexed position.
• In the flexed position with the table at lowest height, patients can easily enter or exit the table from the foot end.

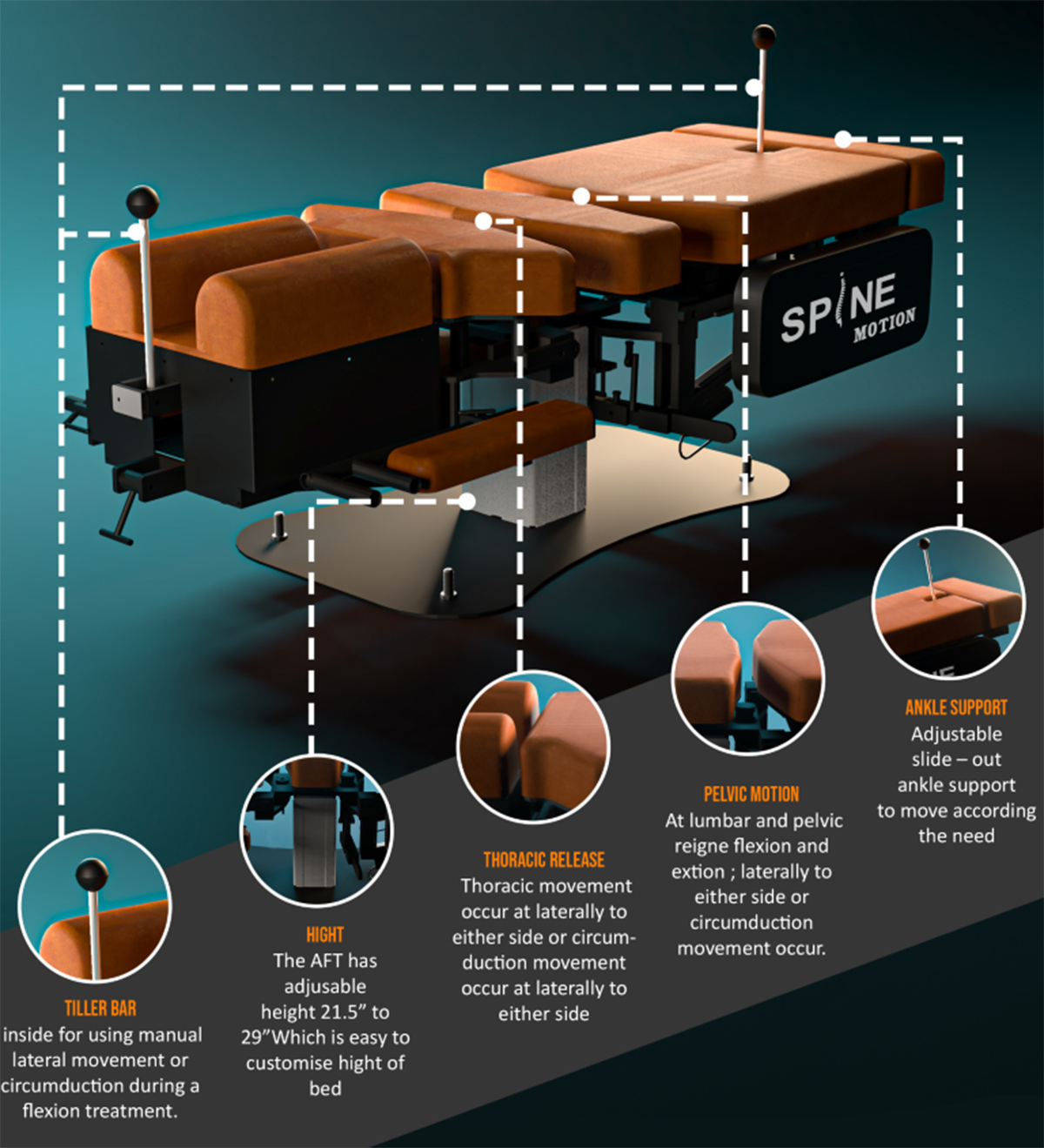

• The pelvic section of the AFT moves laterally and can be easily maneuvered during hexing using the tiller bar.
• It can also be locked laterally to either side.

Special Features

• Display Speed Adjust: We are providing 7 inch display and inbuilt 5 programme. We can set this programme as per patient treatment requirement. We can easily control traction and distraction, also flexion and extension. This operating system is advanced, convenient and durable. We can easily operate it and do control on speed also holding time cycle. The most important thing is that we can set cycle time as per requirement of patient treatment. While patient treatment time we can do any other stuff also we can give treatment to other patients.
• Table Height Adjustable: Remote control is available for using to adjust the height of table.
• Patient Shut-Off: In case emergency situation and sudden uncomfortable movement patient can stop quickly.

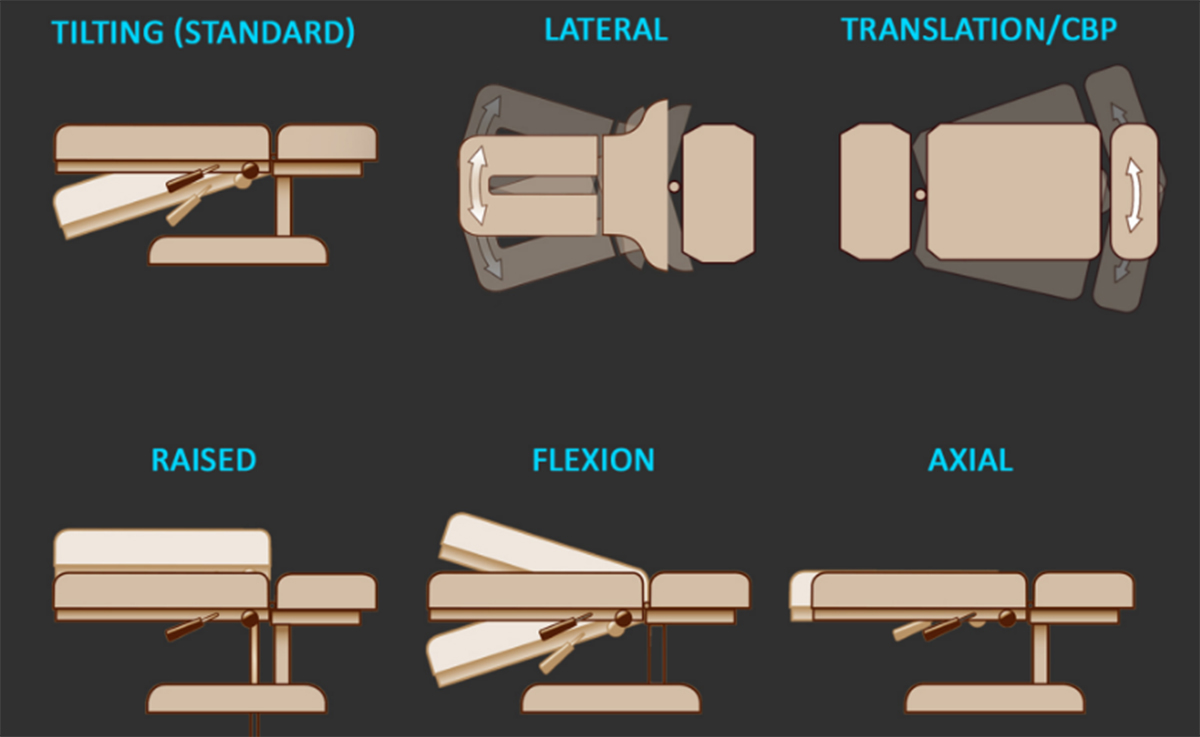

• Headpieces: Add functionality to your headpiece by combining several headpiece options Raised, Flexion, Axial-Motion, Lateral and Translation (CBP). The manual AFT comes standard with a tilt headpiece.
• Manual Cervical Flexion: The Flex-Headpiece comes with the raised headpiece, occipital strap and removable tiller bar. The headpiece unlocks and a gas-spring gently compresses and recoils as you control the flexion, lateral and long-axis movement.

Condition

• Spondylolisthesis
• Disc prolapsed
• Scoliosis
• Ankylosing spondylitis(AS)
• Stenosis
• Sciatica (unilateral/bilateral)

Advantage

• Traction in prone lying position.
• For scoliosis lateral flexion possible in prone lying (upper thoracic).
• Flexion with traction possible it reduces disc pressure.
• In posterior disc prolapse, it is possible to give traction in flexion as well as lateral flexion position.

Specifications

• Electric actuator 60 hz, 4.8 amps / -10 amps. (220-50 cycle also ava lifting capacity – 450 lbs)
• Length – 5’5” (extends to 6’2”), with cervical drop – 5’7” to 6’4”, width – 24”

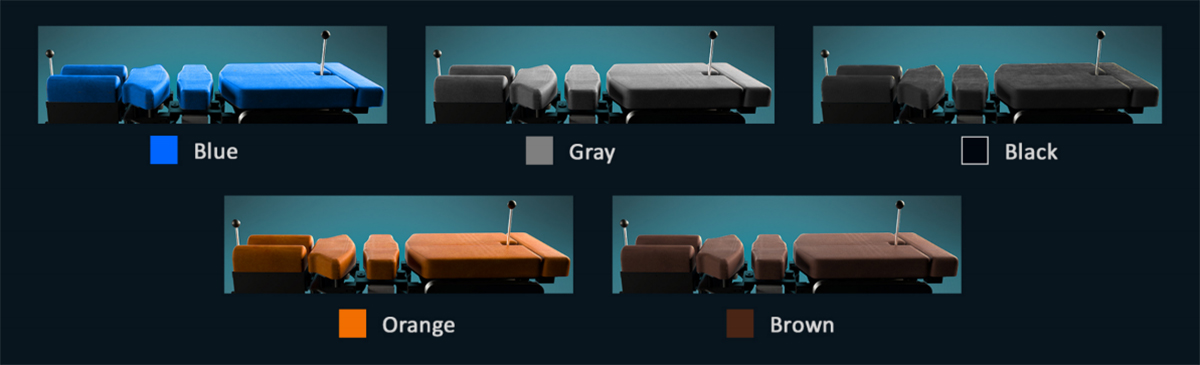

• Range of height – 21.5” to 29”; higher height available medium density foam top; firm and soft density upon request choice of colours for upholstered top.
• Beige gray or black telescoping base skirting constructed of fire – rated thermo-plas powder-coated internal and external metal parts.
• Shipping weight 250-300 lbs.
• One-year warranty on all parts and labour.
