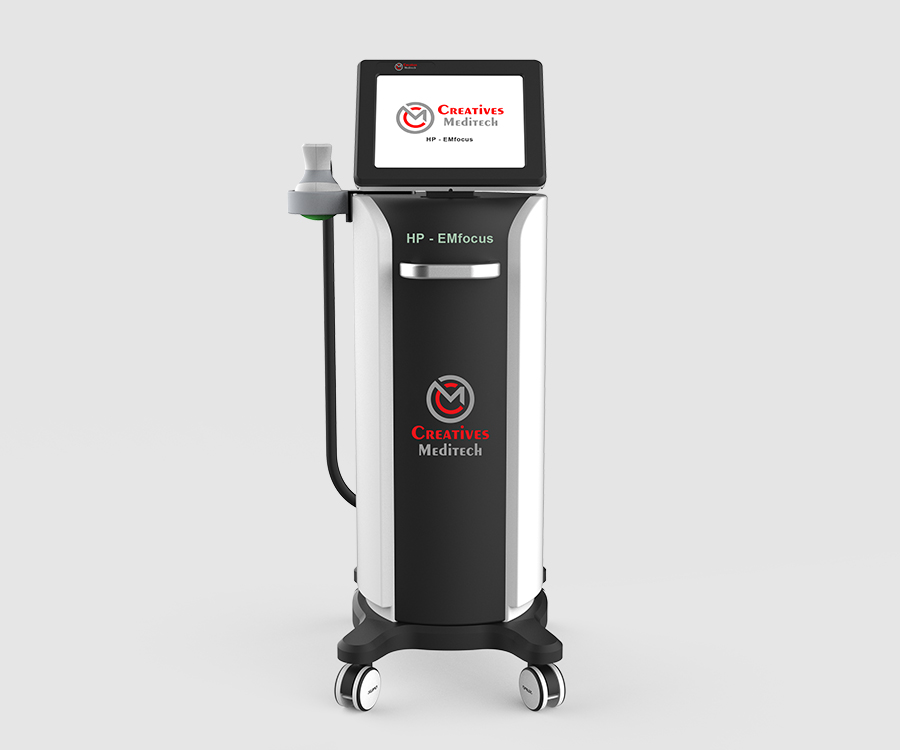

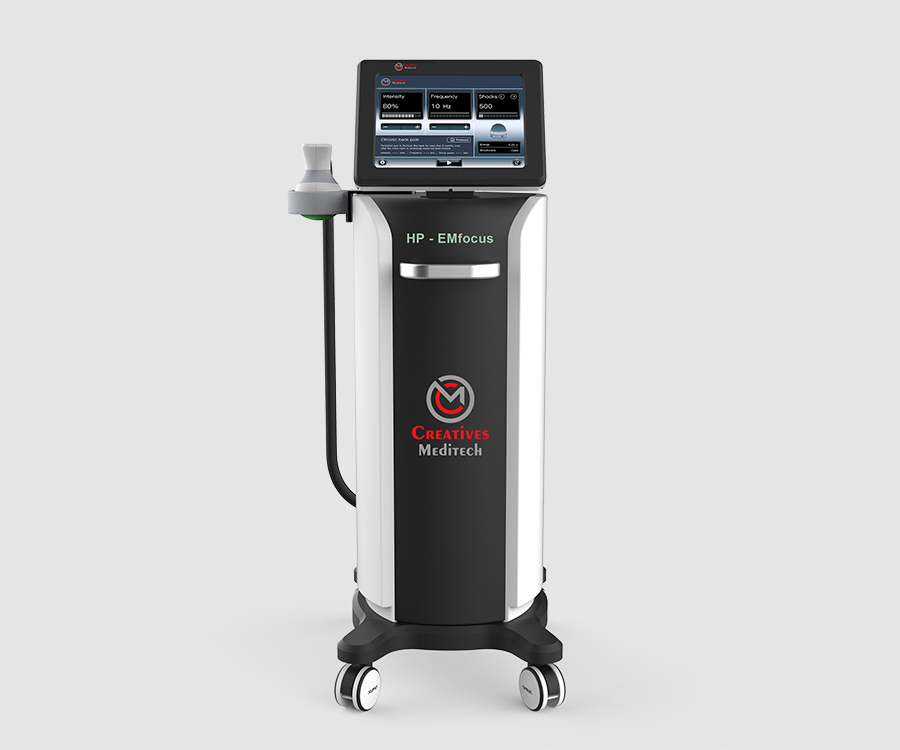

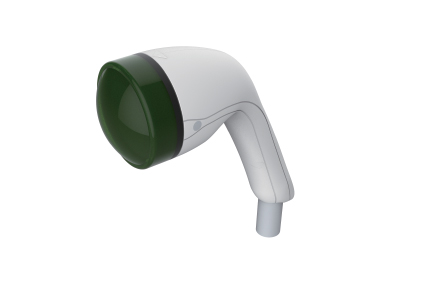

HP - EMFOCUS Shockwave (Vertical Model)
Electromagnetic focus shockwave technology is a newer generation technology. It discharges high-voltage electricity to the electric coil and to form a powerful pulse electromagnetic field energy. The electromagnetic wave generates a deep shock wave in the water. Its advantage is that the output energy is extremely stable, the focal length is long, and the lifespan of the electromagnetic generator is also long-lasting and stable.

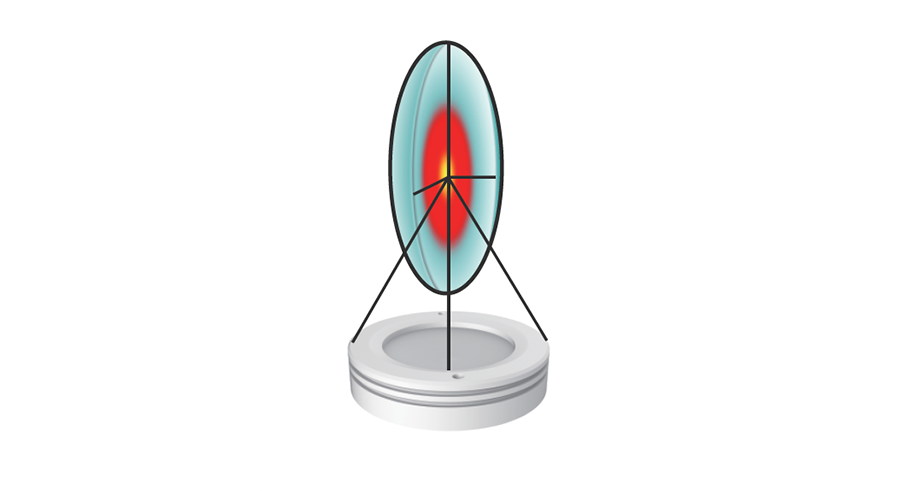

HP - EMfocus Focal Zone
The focal zone is the area of maximum energy intensity. lts size is basically independent of the selected energy level. By contrast, the size of the treatment zone depends on the selected energy level and is generally larger than the focal zone.

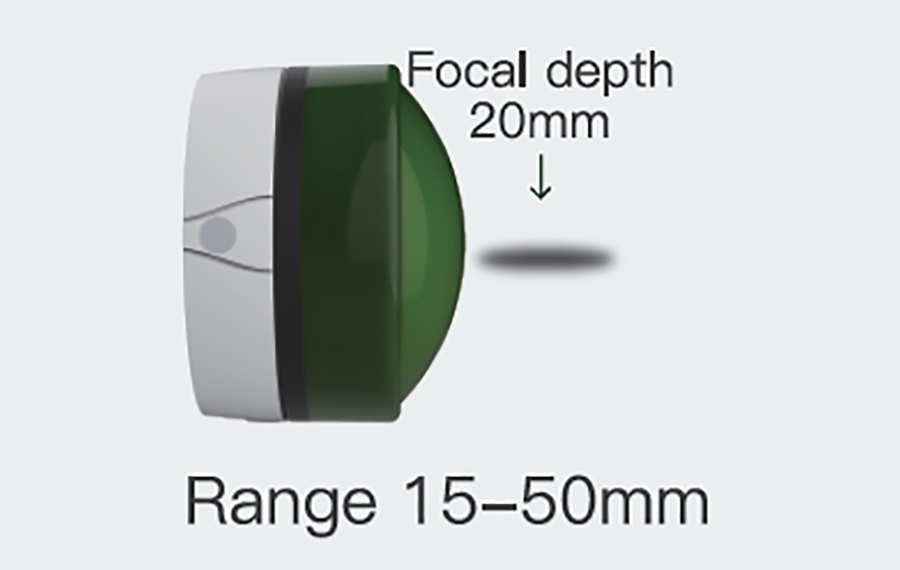

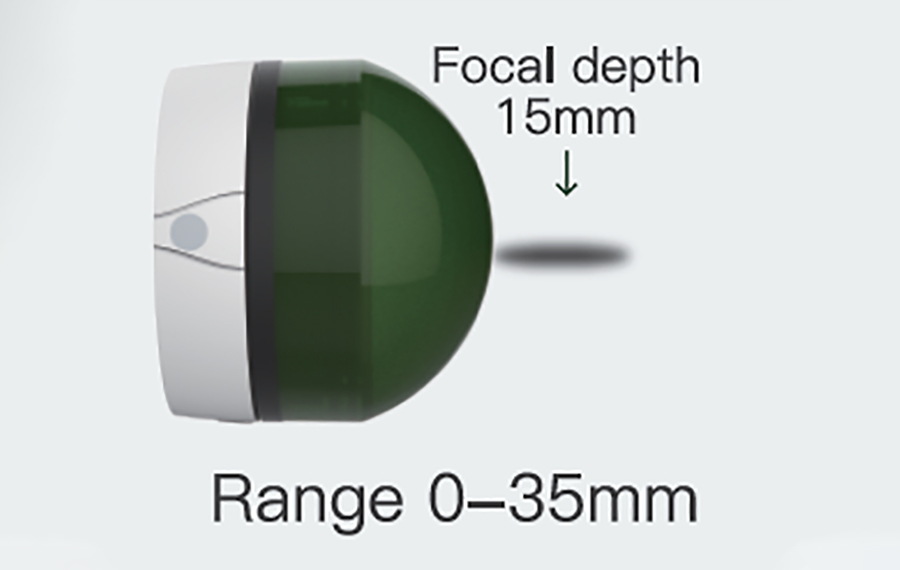

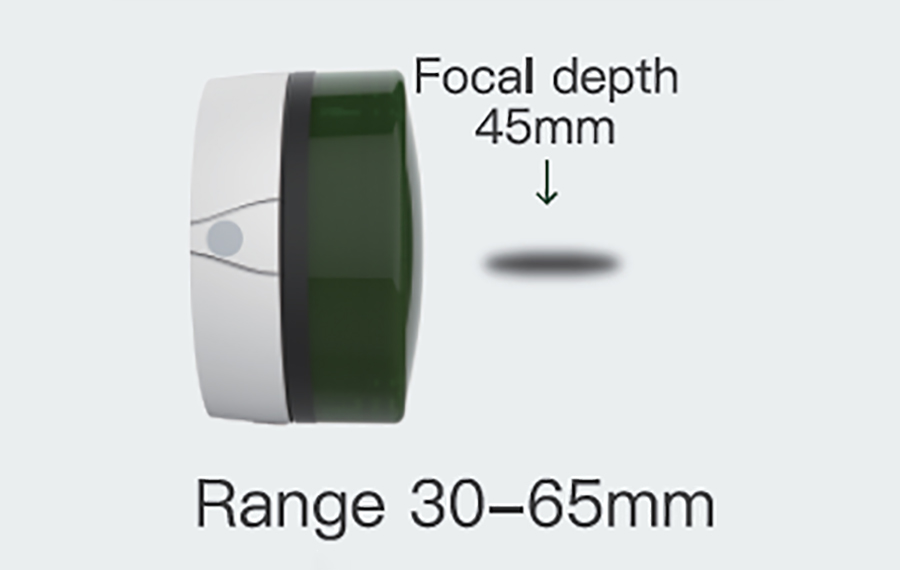

HP - EMfocus (Penetration Depth)
Dynamic penetration depth control. Adjust shock wave penetration depth by touch screen and energy levels by button on applicator. No need gel pads.
Water Level
Water Level
Water Level
HP - EMfocus Comfort Treatment
Not only is the effectiveness better with Focused-ESWT, but the skipping-the-skin part means you don't stimulate the skin sensory network; this leads to a more comfortable session. And due to the comfort levels being better, higher doses can often be used.

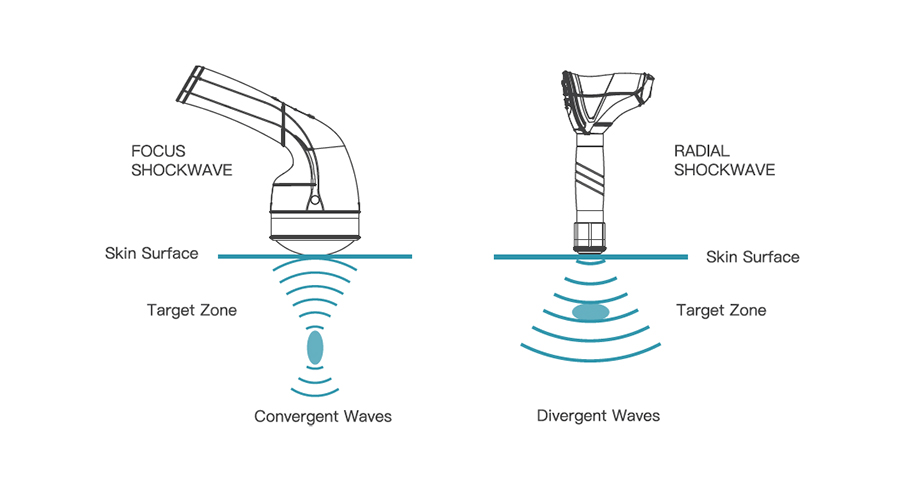

| Comparision between Radial Shockwave Therapy & Focus Shockwave Therapy | ||
|---|---|---|
 |
 |
|
| Radial Shockwave | Focus Shockwave | |
| Wave Propagation | Divergent Wave | Convergent Wave |
| Penetration Depth | 0-35mm | 0-65mm |
| Impulse | Slow | Fast |
| Effect | Superficial Mechanical | Deep Mechanical |
| Target | Skin, Muscle | Skin, Muscle, Bones |
| No. of Treatments | More | Less |
| Application Frequency | Twice a week | Once a week |
| Treatment Duration | 10 Minutes | 05 Minutes |
| Usage Area | Physiotherapy, Orthopaedics, Sports Medicine, Aesthetics | Physiotherapy, Orthopaedics, Sports Medicine, Urology, Dermatology, Cardiology, Veterinary |
| More Effective In | - | Erectile Dysfunction, Wound Treatment |
HP - EMfocus Features
- - Game-changing and affordable focus shockwave
- - Wider clinical applications
- - Well defined, precise focus - perfect for diagnosis and therapy
- - Wide range of energy settings with a pulse rate of up to 10 Hz

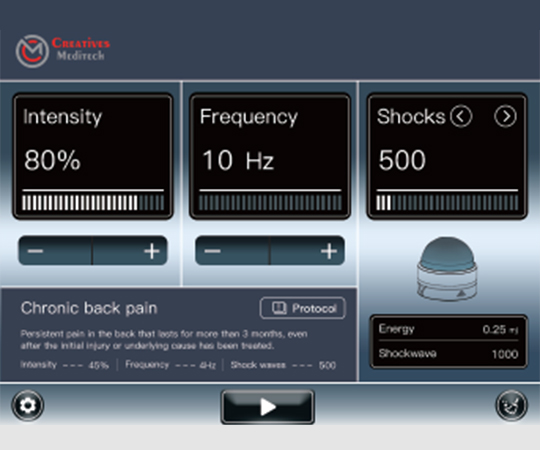

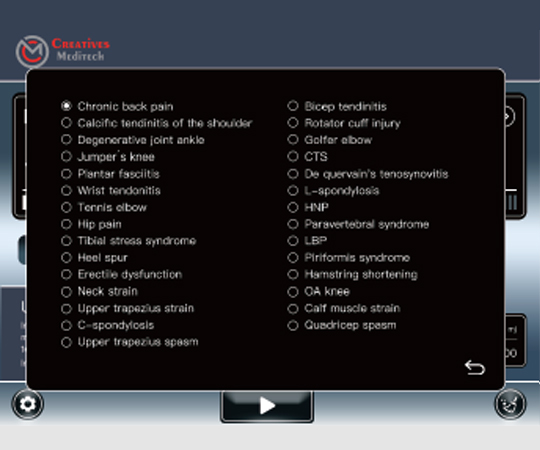

- - User-friendly software with treatment protocols and preset parameters
- - No gel pad
- - Easy-to-operate handle with intensity adjustment buttons
| Technical Specification | |
|---|---|
| Model | HP - EMfocus Shockwave |
| Power Voltage | ≤400W |
| Penetration depth | 0-65mm |
| Frequency | 1-10Hz |
| Pressure Range | 0.06-0.39MJ/MM2 |
| Voltage | 100-110V or 220-240V |
| Applicator | 1PCS |
HP - EMfocus Mechanisum
The electromagnetic shockwave is based on the physical principle of electromagnetic induction. It enables very precise and highly sensitive dosing of the applied shock wave energy. The shock wave source uses a special coil to focus the shock waves. Shock waves are generated in water outside the body and then transmitted to the biological tissue.
