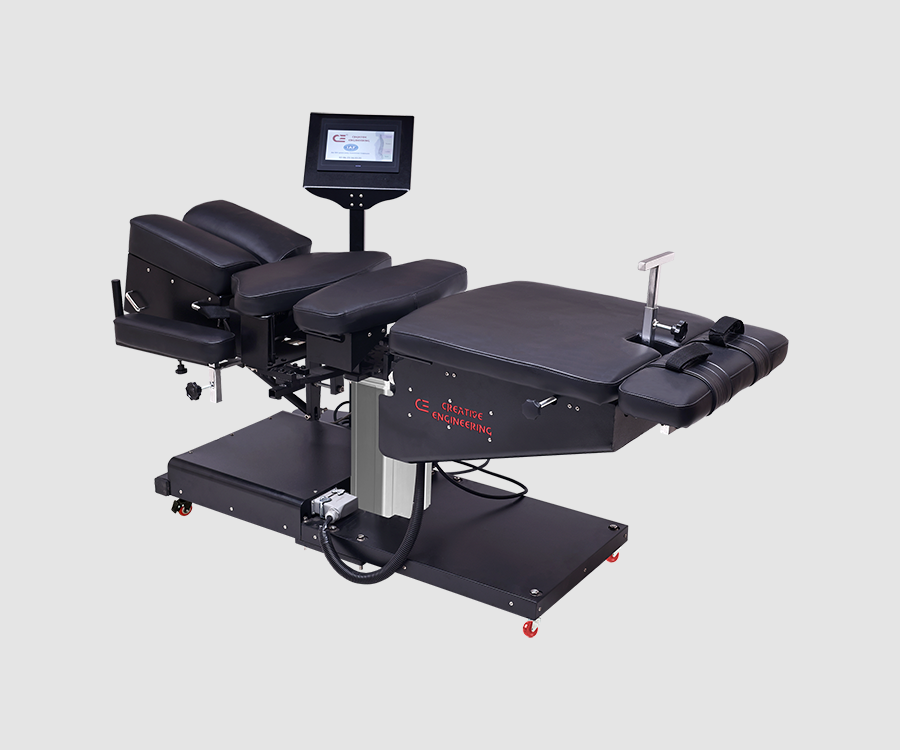

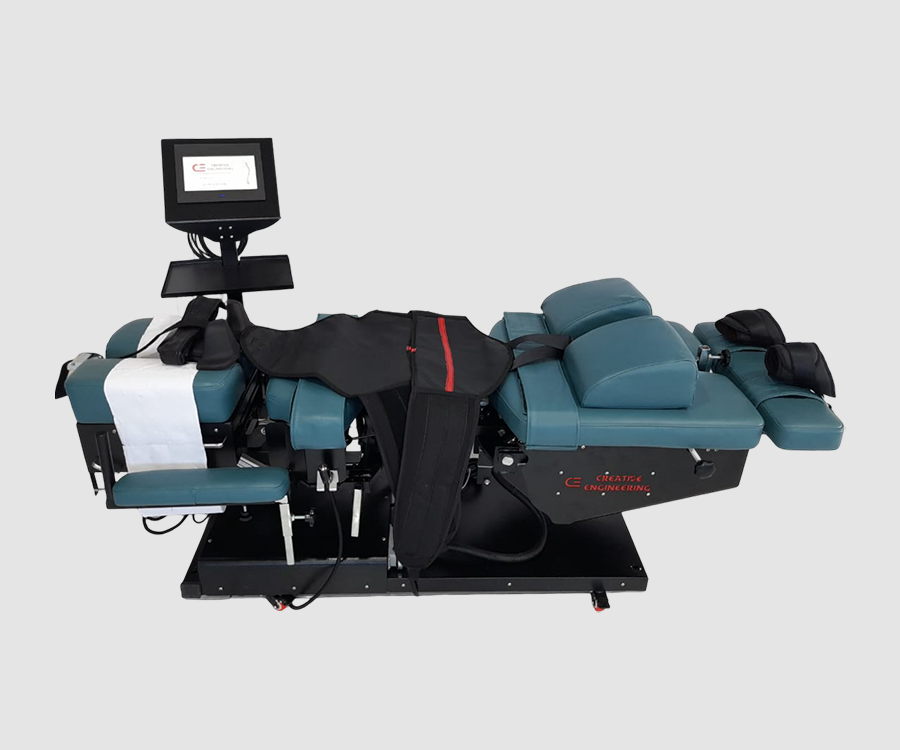

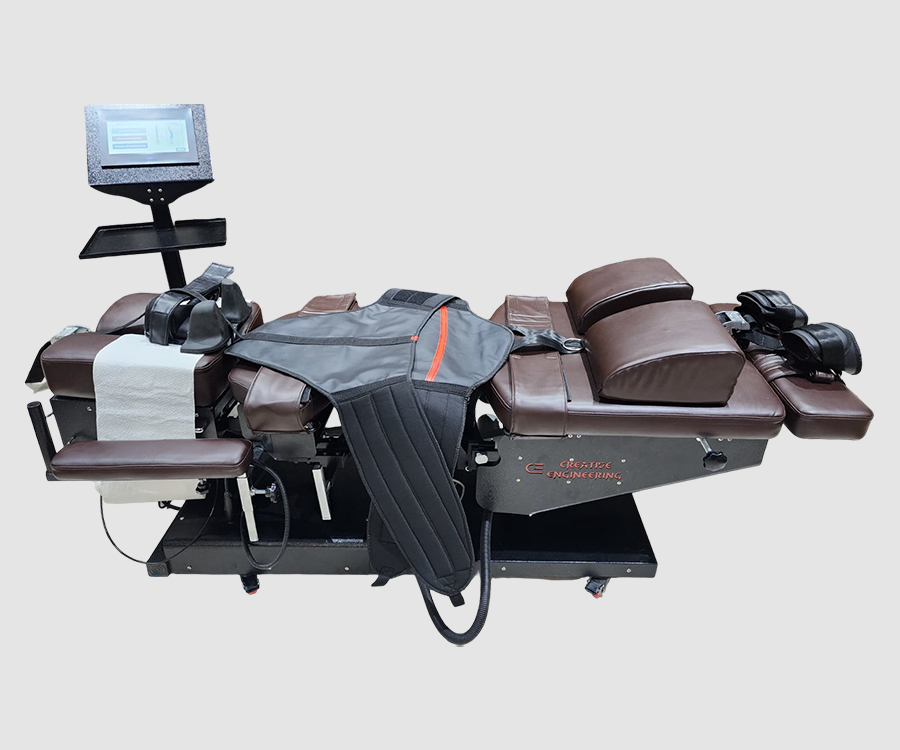

Robotic 3d Spinal Decompression System

Spinal decompression is a non-surgical revolutionary computer-aided technology to create negative intradiscal pressure in the spine, that helps to relief of pressure on the spine or on one or more compressed nerve roots passing through or existing spinal column.

By this technology we can treat the symptoms of back and neck pain from herniated, bulging, degenerated and slipped discs.

Dimensions

Retracted Length: 78” / Extended Length: 96”
Adjustable Table Height Min 26”- Max 42”
Machine Weight Approx. 210 kg
Required space for the comfortable treatment 10x6 Feet

Retracted Width: 30” / Extended Width: 40”
Display Height 46”
Load Capacity 150 kg

Candidate For Decompression Table

- Lumbar Spondylosis
- Never Root Impingement

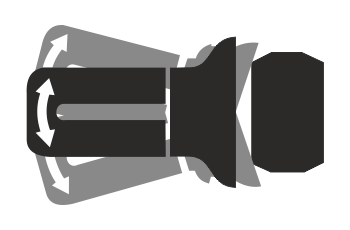

- Scoliosis Correction
- Sciatica

- Muscle Spasms
- Cervical Spondylosis

- Back Pain
- Neck Pain

Standard Features

Adjustable Headpiece

Head piece is adjustable for provide comfortable headrest

Design Stand

Display stand is easy to movable on wheels

Adjustable Hand Rest

Fully adjustable arm resting handle

Tiller Bar

Inside for using manual lateral movement or circumduction during a flexion treatment

Adjustable Table Height

All treatment is done at different height so we provide table height is easily adjustable by remote between 26 inch to 42 inch

Cluster Wheel

Lockable cluster wheel available for easy to move the table.

Ankle Support

Adjustable slide out ankle support to move according the need.

Colourful touch screen displayWe are providing 10-inch color full touch screen display for operating. It's smooth, easy to operate, advanced, convenient and durable.
Patient Emergency SwitchPatient safety always comes first. In case emergency situation and sudden uncomfortable movement patient can stop quickly.
Get treatment feedback in real time (live chat)Using a precise load cell and feedback system, display provides you with real-time graphing of treatments and decompression force. Your table will continually measure and respond with time, load and angle.
Both side lumbar and cervical separate decompression by separate motorThe spinal decompression table has separate lumbar and cervical motors that operate independently, so there is no need to change patient position when switching from lumbar to cervical. This saves time and increases efficiency.
Pre-programmed lumber and cervical decompression protocolsWith 6 legacy preprogrammed decompression protocols, your table will be ready to treat a wide variety of patient conditions.

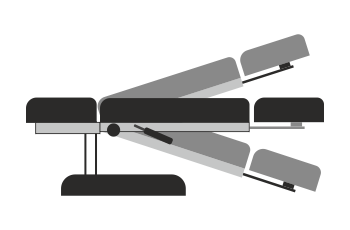

DistractionIt is a special feature in which lumbar vertebrae are distracted according to desired amount. Distance can be maintained for desired time. In distraction position, side flexion and flexion extension possible.
Auto angle calibration system.
Each patient's treatment record system available.
Each cushion with double layer foam for the comfort and also 30 cushion color verity available.
Used professional medical actuator, low noise, high stability and strong.
Lockable cluster wheel available for easy to move table.
Heavy structure, High stability and MADE IN INDIA.
1 Year warranty and life time telephonic technical support free.

Make treatments customizable, specific and effective

For difficult cases require advanced treatment, you also have the ability to create your own fully customized protocols to best meet the needs of your patients.

Our custom software allows for quick and easy fine tuning of
